Environmentally friendly devices
Ideal for Heating Oils (Fuel, Lub.) or Water
Easily replaceable Ceramic Heating elements
Fuel Savings
Environmentally friendly devices
Ideal for Heating Oils (Fuel, Lub.) or Water
Easily replaceable Ceramic Heating elements
Fuel Savings for Aux. Boilers
Emission Reduction from Aux. Boilers
Zero Emission in Port (Power Supply by AMP)
Low Operation Costs
Wide heat duty range.
Operational Flexibility & Reliability

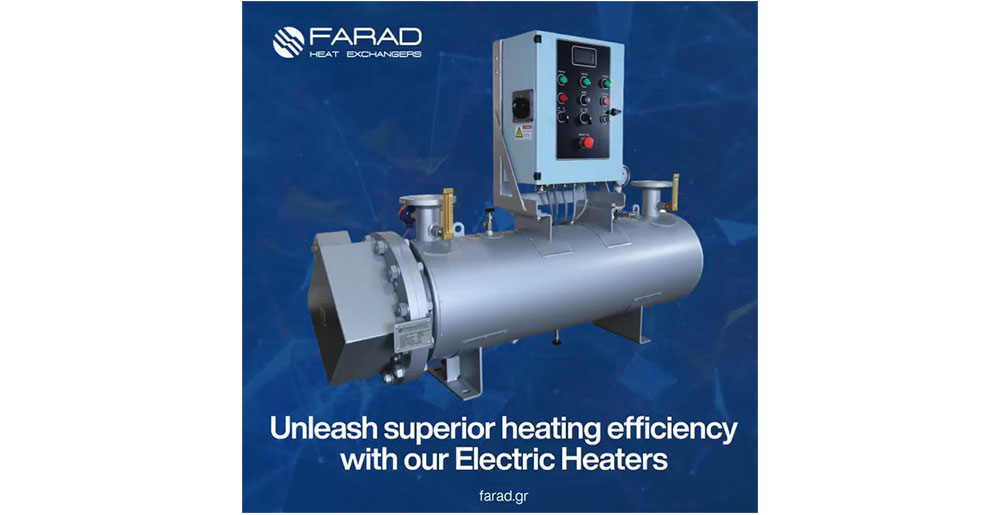

FARAD’s Electric Heaters Series
Farad’s Electric Heaters are designed to work with high viscosity crude oils as well as lubrication oils and water when there is no other heating medium available. The EH series heat exchangers are primarily used as initial or extra heating of oil or water in the shipping industry. Their flexible design and wide heat range (from 9 kW to 225kW) makes them well suited for any application where backup or booster heating is required or where electric power is the cheapest or the only available power source.
Long life removable ceramic core heating elements are designed for optimum trouble-free service and ease of maintenance. A failed electric element can be replaced without the need to isolate and drain the heater.
Low surface load (W/cm2) reduces the risk of damaging highly viscous fluids while improving flow ability of fuel oils. As a result, heating elements are protected from over-heating and failing prematurely.
Heavy fuel Oil: 1.5 W/cm2
Lubrication Oil: 1.5 W/cm2
Fresh Water: 3.0 W/cm2
Optional, 3 to 5-steps startup configuration with all controls prewired.
Pump Interlock function as a standard.
Selector switch for operation based on viscosity signal (4-20mA) prepared by shipyard.
All Farad Electric Heaters from EH range are fitted with an adjustable temperature controller (with PT-100 temperature sensor) and an overheating thermostat.
Warranty 24 months after delivery.
Each unit built by FARAD undergoes hydraulic and electric testing.
Materials
Materials are sourced from reputable EU manufacturers and material thickness is higher than that required by the relevant design code. Stainless and carbon steel are used. Heating elements are made of high quality ceramic material.
Design parameters
Industry leading heat exchanger software is used to find the required heat exchanger dimensions based on customer requirements. Additional standard design parameters are listed below:
Design pressure: 16 barg
Test pressure: 24 barg
Design Temperature: 160 oC
Flanges PN16 DIN 86030/EN1092-1
Standard feature/accessories of FARAD’s electric heaters
Safety valve
Drain valve (AISI-316)
Air vent valve (AISI-316)
Thermometers (L-form),2pcs
PT-100 sensor
Safety thermostat (Marine type)
Approvals
All electric heaters are compliant with European Legislation covering CE markings/PED approval and can be certified by various classification societies (ABS, BV, DNV-GL, LR) upon request.
Delivery
Delivery within 2-4 weeks from order receipt. Some models may be available for immediate delivery (in- stock).
